Double click on the feed button - start uploading filament
Single click on the feed button - stop uploading filament
Single click on the back feed button - start return filament

How to uploading and unuploading

Connect 3d pen to power supply with DC 5V 2A or computer, LED lights, click "√" to begin heat the pen. Cut the filament end be trim before uploading, when the temperature reach at 80 degree or above, double click feed button, then try to push the filament slightly when feeding the filament, after a while, this 3D pen will unload filament automatically without your pushing.

Keep the filament end be trim before loading

3D Pen, Professional 3D Print Pen with LED Display for Doodling, Drawing, Art & Craft Making,3D Modeling Pen Kit with Pen Holder and PLA Filament Refills (High Temprature, Silver)

Specifications:
Material: Durable aircraft-grade aluminum
Size: 7.1*0.71*0.71 inch (180*18*18mm)
Weight: 52g
Voltage: DC 5V 2A
Nozzle Diameter: 0.6mm
Printing Temperature: 180-220℃ adjustable
Printing Speed: Low, Mideum, High speed
Printing Model: PLA 1.75mm
Cable length: 1.5m
Package Size: 18.8*15.5*6cm
Package Weight: about 400g
Package included: 1* 3D pen, 1*USB cable, 1* power adapter, 1* 7.5m length PLA filament, 1* pen holder

Operation Guide:
1.Connect 3d pen to power supply with DC 5V 2A or computer, LED lights, click "√" to begin heat the pen
2.Long press "√" for 5 s to show material "ABS" or "PLA" and switch material "ABS" or "PLA",confirm your filament you prefer. (we suggest use PLA filament, it is non-toxic, odorless and included in the package )
3.Single Click "√" to choose high/medium/low speed
4.When the temprature shows 160℃ or above, check the filament end is trim, push it from the filament hole
5.Double click on "《" button to loading filament filament, single click it to stop loading filament
6.Single click "《" button to stop loading, then click ">" button to return the filament

WARNING:
1: Suitable age: 5 years old or over( the children under 5 years old should be guided by parents)
2: Pay attention on the nozzle, do not touch it during working
3: Prohibited to input any other material into the filament loading hole
4: Keep the filament end be trim before loading
5: Remember to turn off the AC adapter after each use
6: Keep the 3D pen away from water and children, put it in a safe place

Note:
The 3D pen will switch to standby mode if stop uploading over 3 minutes, just press the loading button to wake it up



Warranty
Limited 12 months warranty from date of purchase

Finer and Lighter

Pen body weight 52g, light and delicate.Convenient to carry and never be your burden.

simple shape


The most beautiful 3d pen design

Aircraft-grade Aluminum


4th generation 3D pen, durable Aircraft-grade Aluminum shell, more advanced than others.

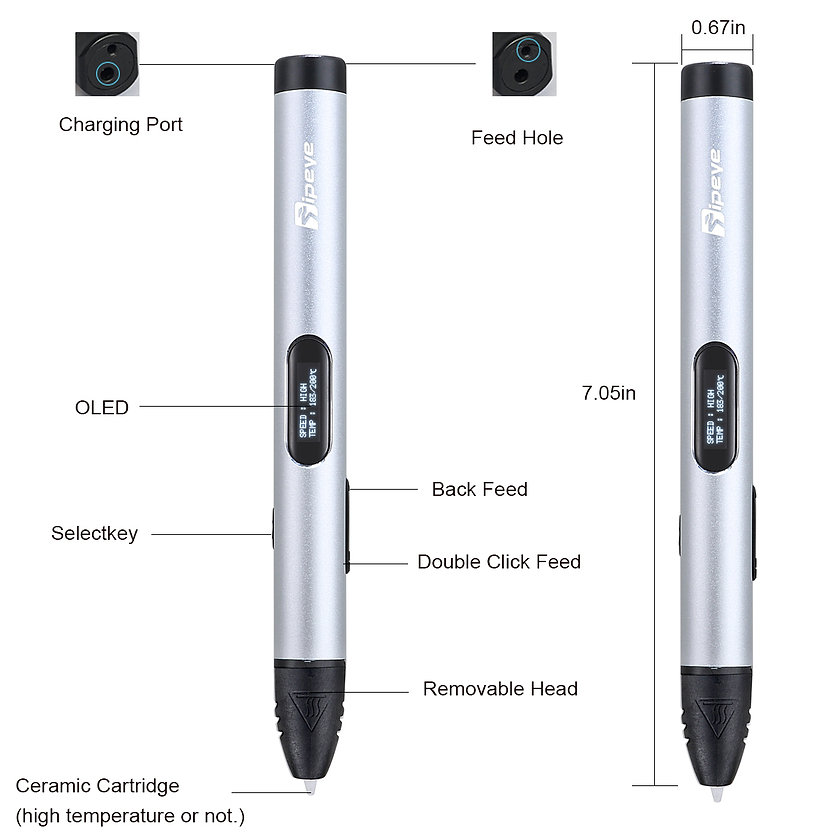

Removal nozzle:  Turn the 3D pen nozzle towards clockwise, you will remove the nozzle easily, and so is the pen cap.

When you upload filament, single click feed button to stop uploading filament, single click back feed button to return filament, pull filament slightly until it's out, then remove the power supply.

How to back feed button

Long press "√" for 5 s to show material "ABS" or "PLA", and Long press "√" for 5 s again to switch material "ABS" or "PLA",confirm your filament you prefer.
How to choose uploading speed:
Single Click "√" to choose high/medium/low speed

How to switch to filament material

Manual 3D Printing Pen Normal Temperature

3D pen Manual
